CBW-F Series Gear Pumps
Application and features
CBW-F is middle or high pressure gear pump and is the power resource element of hydraulic system, the pumps applies high precision gear and high strength housing, floating liner and DU shaft sleeve, therefore the pumps is with advantages of simple structure, light weight, low noise, good reliability, etc. It is widely used in the hydraulic system of motor transport machinery, construction machinery, mining machinery, and agricultural machinery, etc.

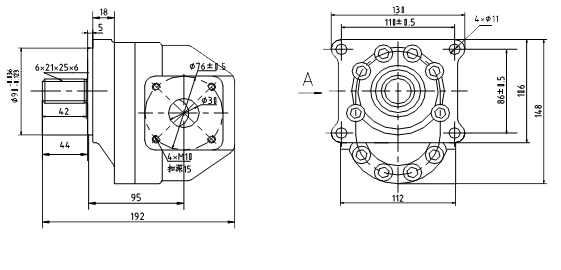

CBW-F563 dimensions
Specification
|
Type |
Displacement（mL/r） |
Pressure (MPa) |
Rotation（r/min） |
Volume efficiency% |
|
Nominal |
Max. |
额定 |
最大 |
|
CBW-F550 |
50 |
20 |
25 |
2000 |
2500 |
≥90 |
|
CBW-F563 |
63 |
20 |
25 |
2000 |
2500 |
