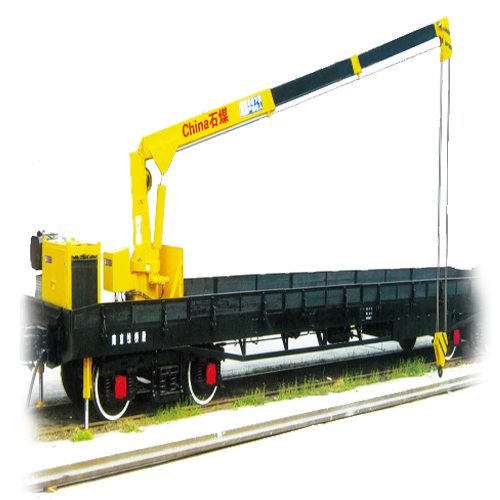

轨道用起重车
Specifications:
|
Type |
QYG-8ⅢA |
QYG-6.3Ⅲ |
QYG-5Ⅱ |
QYG-4ⅡA |
QYG-3.2Ⅱ |
QYG-3.2Ⅰ |
|
Max. lifting moment （KN·M） |
240 |
155 |
125 |
100 |
64 |
64 |
|

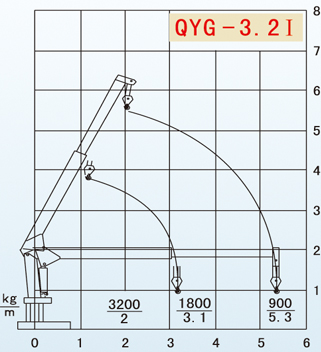

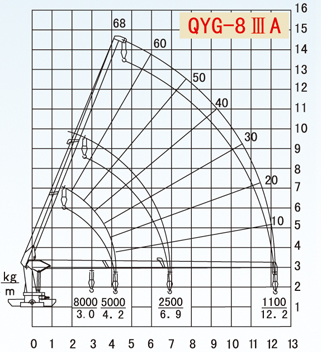

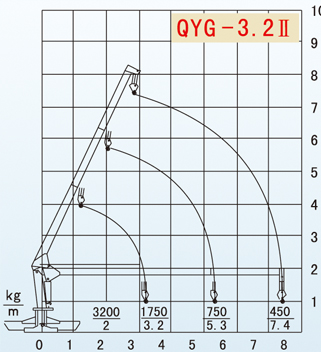

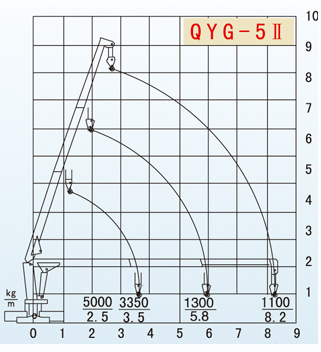

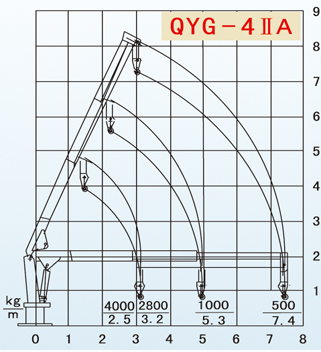

Lifting capacity/working radius（Kg/M） |
8000/3.0 |
6300/2.5 |
5000/2.5 |
4000/2.5 |
3200/2.0 |
3200/2.0 |
|
5000/4.2 |
4000/4.7 |
4000/3.0 |
3200/3.0 |
2000/3.0 |
2500/2.5 |
|
2500/6.9 |
1800/6.0 |
1700/5.0 |
1700/4.0 |
900/4.5 |
1600/3.5 |
|
1700/9.0 |
1150/8.2 |
1250/7.0 |
700/6.0 |
550/6.0 |
1100/4.5 |
|
1100/12.2 |
600/10.3 |
1100/8.2 |
500/7.4 |
450/7.4 |
900/5.3 |
|
Max. workign radius（M） |
12 |
10 |
8 |
7 |
7 |
5 |
|
Max. lifting height（M） |
12 |
11 |
9 |
8 |
8 |
6 |
|
Boom angle |
0°-68° |
2°-72° |
2°-72° |
1°-° |
1°-65° |
1°-65° |
|
Swivel angle |
360° clockwise and reverse |
|
Matching vehicle |
all kinds of railway platform cart |
|
Power pack choice |
diesel or motor |
|
Crane weight |
3000 |
2000 |
1860 |
1700 |
1100 |
1100 |
|

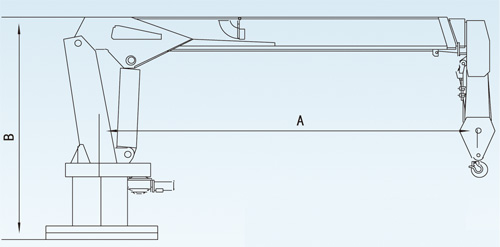

A |
4180 |
3705 |
3570 |
3100 |
3177 |
3134 |
|
B |
2460 |
2240 |
2320 |
2460 |
2100 |
2100 |
|
C |
|
|
|
|
|
|
|
D |
|
|
|
|
|
|
|

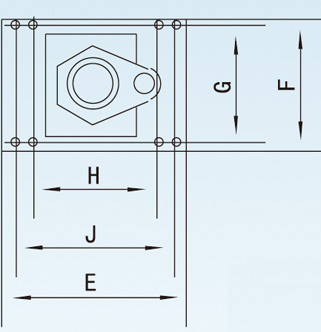

E |
|
|
1000 |
1000 |
1000 |
1000 |
|
F |
|
|
660 |
660 |
660 |
660 |
|
G |
|
|
550 |
550 |
550 |
550 |
|
H |
|
|
600 |
600 |
600 |
600 |
|
J |
|
|
860 |
860 |
860 |
860 |
