Model |
Length
（m） |
Amount
（t/h） |
Chain speed
（m/s） |
Chain mode
（mm） |
power
（kW） |
Reducer model |
Chute size
（L×W×H） |
|
420 series |
SGB420/22B |
80 |
80 |
0.88 |
Φ14×50 |
22 |
JS30 |
1200×420×150 |
|
SGB420/30B |
100 |
80 |
0.86 |
Φ14×50 |
30 |
JS30 |
1200×420×150 |
|
SGB420/40B |
100 |
100 |
0.88 |
Φ14×50 |
40 |
JS40 |
1200×420×150 |
|
620
series |
SGB620/80 |
150 |
150 |
0.86 |
Φ18×64-C |
2×40 |
JS40 |
1500×620×180 |
|
SGB620/40T |
100 |
150 |
0.86 |
Φ18×64-C |
40 |
JS40 |
1500×620×180 |
|
SGB620/55 |
120 |
150 |
0.86 |
Φ18×64-C |
55 |
JS55 |
1500×620×180 |
|
SGB620/150 |
100 |
200 |
0.868 |
Φ18×64-C |
2×75 |
JS75 |
1500×620×180 |
|
630
series |
SGB630/150C |
150 |
250 |
0.868 |
Φ18×64-C |
2×75 |
JS75 |
1500×630×190 |
|
SGD630/180 |
120 |
450 |
1 |
Φ26×92-C |
2×90 |
JS90 |
1500×590×263 |
|
SGD630/220 |
150 |
450 |
1.1 |
Φ26×92-C |
2×110 |
JS110 |
1500×590×264
1500×590×263 |
|
SGD630/264 |
120 |
450 |
1.1 |
Φ26×92-C |
2×132 |
JS132 |
1500×590×263
1500×590×264 |
|
SGZ630/180 |
120 |
450 |
1 |
Φ22×86-C |
2×90 |
JS90 |
1500×590×263 |
|
SGZ630/220 |
150 |
450 |
1 |
Φ22×86-C
Φ26×92-C compacted |
2×110 |
JS110 |
1500×590×252
1500×590×220
1500×590×208 |
|
SGZ630/264 |
150 |
450 |
1 |
Φ22×86-C
Φ26×92-C |
2×132 |
JS132 |
1500×590×252
1500×590×263 |
|
SGZ630/320 |
180 |
450 |
1.1 |
Φ26×92-C |
2×160 |
JS160 |
1500×590×263 |
|
730
series |
SGZ730/264 |
150 |
550 |
1 |
Φ26×92-C
Φ26×92-C compacted |
2×132 |
JS132 |
1500×690×220
1500×680×263 |
|
SGZ730/320 |
150 |
700 |
1 |
Φ26×92-C |
2×160 |
JS160 |
1500×680×290 |
|
SGZ730/400 |
200 |
700 |
1 |
Φ26×92-C |
2×200 |
JS200 |
1500×680×290 |
|
SGZ730/500 |
200 |
800 |
1 |
Φ26×92-C |
2×250 |
JS250 |
1500×680×290 |
|
764
series |
SGZ764/264 |
150 |
700800 |
1.1 |
Φ26×92-C compacted
Φ26×92-C |
2×132 |
JS132 |
1500×724×220
1500×724×290 |
|
SGZ764/320 |
150 |
800 |
1.1 |
Φ26×92-C |
2×160 |
JS160 |
1500×724×290 |
|
SGZ764/400 |
150 |
800 |
1.1 |
Φ26×92-C
Φ30×108-C |
2×200 |
JS200 |
1500×724×290 |
|
SGZ764/500 |
180 |
800 |
1.1 |
Φ30×108-C |
2×250 |
JS250 |
1500×724×290 |
|
SGZ764/630 |
200 |
800 |
1.1 |
Φ30×108-C |
2×315 |
JS315 |
1500×724×290 |
|
800
series |
SGZ800/500 |
150 |
1500 |
1.31 |
Φ34×126-C |
2×250 |
JS250 |
1503×800×303 |
|
SGZ800/630 |
180 |
1500 |
1.31 |
Φ34×126-C |
2×315 |
JS315 |
1503×800×303 |
|
SGZ800/750 |
200 |
1500 |
1.31 |
Φ34×126-C |
2×375 |
JS375 |
1503×800×303 |
|

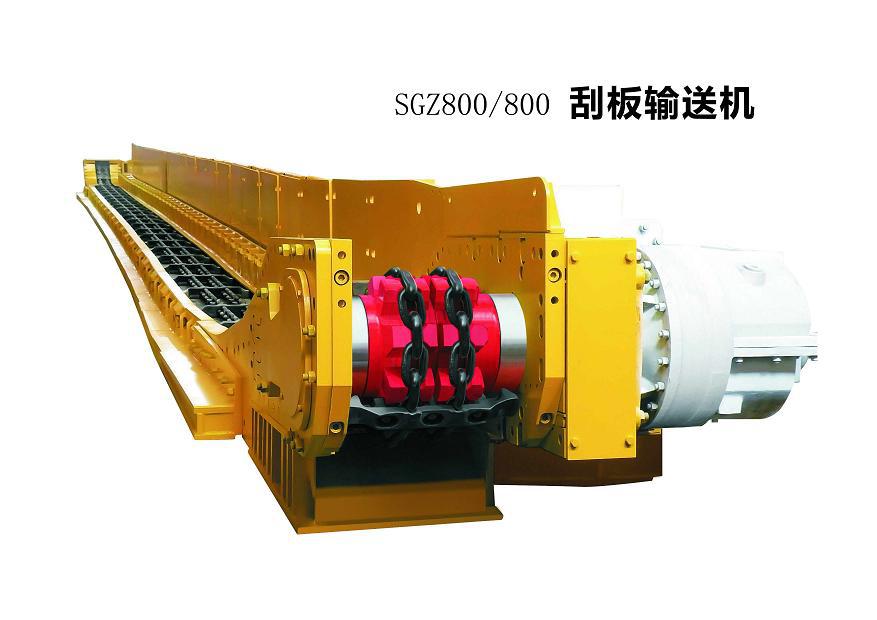

SGZ800/800 |
200 |
1500 |
1.1 |
Φ34×126-C |
2×400 |
JS400 |
1503×800×303
1503×800×308 |
|
SGZ800/1050 |
250 |
1500 |
1.31 |
Φ34×126-D |
2×525 |
JS525 |
1503×800×303
1503×800×308
1750×800×308 |
|
SGZ800/1200 |
200 |
2000 |
1.31 |
Φ34×126-D |
3×400 |
JS400 |
1503×800×303 |
|
830
series |
SGZ830/400 |
150 |
900 |
1.1 |
Φ30×108 |
2×200 |
JS200 |
1500×780×300 |
|
SGZ830/500 |
150 |
1000 |
1.1 |
Φ30×108 |
2×250 |
JS250 |
1500×780×300 |
|
SGZ830/630 |
150 |
800 |
1.1 |
Φ30×108 |
2×315 |
JS315 |
1500×780×300 |
|
SGZ830/750 |
150 |
800 |
1.1 |
Φ30×108 |
2×375 |
JS375 |
1500×780×300 |
|
900
series |
SGZ900/630 |
180 |
1500 |
1.1 |
Φ34×126-C |
2×315 |
JS315 |
1503×900×303 |
|
SGZ900/750 |
200 |
1500 |
1.1 |
Φ34×126-C |
2×375 |
JS375 |
1503×800×303
1503×800×308 |
|
SGZ900/800 |
200 |
1800 |
1.31 |
Φ34×126-C |
2×400 |
JS400 |
1503×800×303
1503×800×308 |
|
SGZ900/1050 |
250 |
2000 |
1.31 |
Φ34×126-D
Φ38×126-Dcompacted |
2×525 |
JS525 |
1503×800×308
1750×800×308
1750×800×320 |
|
1000
series |
SGZ1000/800 |
200 |
1800 |
1.1 |
Φ34×126-C |
2×400 |
JS400 |
1503×1000×308 |
|
SGZ1000/1050 |
250 |
2000 |
1.31 |
Φ38×126-C compacted
Φ38×137-C |
2×525 |
JS525 |
1503×1000×308
1503×1000×320
1750×1000×320 |
|
SGZ1000/1400 |
250 |
2500 |
1.3 |
Φ42×146-C compacted |
2×700 |
JS700 |
1500×1000×352
1750×1000×352 |
