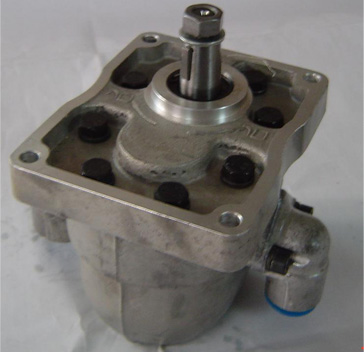

YBC系列齿轮油泵
外形尺寸Ⅰ
|
代号
型号 |
A |
A1 |
C |
C1 |
L |
L1 |
L2 |
B |
B1 |
B2 |
b |
b1 |
H |
|
YBC-5/80 |
105 |
85 |
88 |
68 |
140 |
114 |
59 |
125 |
44 |
36.3 |
16 |
4.5 |
15 |
|
YBC-12/80 |
|
YBC-12/125 |
|
YBC-20/80 |
128 |
36.2 |
|
YBC-30/80 |
147 |
118 |
128 |
99 |
186 |
149 |
77 |
167 |
59 |
46.2 |
21 |
6 |
21 |
|
YBC-45/80 |
|
YBC-60/80 |
170 |
63 |
|
代号
型号 |
D |
X |
Y |
Z |
e |
e1 |
w |
d |
f |
u |
|
YBC-5/80 |
32 |
16 |
10 |
10 |
30 |
20 |
6.6 |
16 |
9.25 |
3 |
|
YBC-12/80 |
|
YBC-12/125 |
|
YBC-20/80 |
|
YBC-30/80 |
50.8 |
19 |
11.5 |
12 |
37.2 |
24.2 |
9 |
22 |
14
|
4 |
|
YBC-45/80 |
|
YBC-60/80 |
40 |
外形尺寸Ⅱ
|
代号
型号 |
A |
A1 |
C |
C1 |
L |
L1 |
L2 |
B |
B1 |
|
YBC-16/160 |
105 |
85 |
88 |
68 |
140 |
114 |
59 |
122 |
44 |
|
YBC-30/160 |
147 |
118 |
128 |
99 |
186 |
149 |
77 |
63.5 |
62 |
|
YBC-35/160 |
|
YBC-45/160 |
170 |
67 |
|
代号
型号 |
b |
b1 |
H |
D |
L |
d |
d1 |
h |
|
YBC-16/160 |
16 |
4.5 |
15 |
32 |
20 |
16 |
13 |
3.5 |
|
YBC-30/160 |
24 |
5 |
21.15 |
50.8 |
25 |
22 |
18 |
5 |
|
YBC-35/160 |
|
YBC-45/160 |
性能参数
|
型号 |
公称排量(mL/r) |
压力(MPa) |
转速(r/min) |
输入功率(kW) |
出入管口尺寸 |
质量(kg) |
|
额定 |
最高 |
额定 |
最高 |
出口 |
入口 |
|
YBC-5/80 |
4 |
8 |
12 |
1500 |
2000 |
1.4 |
G5/8″ |
G3/8″ |
1.75 |
|
YBC-12/80 |
8 |
8 |
12 |
1500 |
2000 |
2.8 |
G5/8″ |
G3/8″ |
1.75 |
|
YBC-20/80 |
16 |
8 |
12 |
1500 |
2000 |
4.6 |
G5/8″ |
G3/8″ |
1.75 |
|
YBC-30/80 |
20 |
8 |
12 |
1500 |
2000 |
5.8 |
G1″ |
G5/8″ |
4.75 |
|
YBC-45/80 |
31.5 |
8 |
12 |
1500 |
2000 |
9.2 |
G1″ |
G5/8″ |
4.75 |
|
YBC-60/80 |
40 |
8 |
12 |
1500 |
2000 |
11.7 |
G1″ |
G5/8″ |
5 |
|
YBC-12/125 |
8 |
12.5 |
16 |
2000 |
2500 |
3.9 |
G5/8″ |
G3/8″ |
1.75 |
|
YBC-16/160 |
8 |
16 |
20 |
2000 |
2500 |
5.6 |
G5/8″ |
G3/8″ |
1.75 |
|
YBC-30/160 |
20 |
16 |
20 |
1500 |
2000 |
11.5 |
G1″ |
G5/8″ |
4.75 |
|
YBC-35/160 |
25 |
16 |
20 |
1500 |
2000 |
14.7 |
G1″ |
G5/8″ |
4.75 |
|
YBC-45/160 |
31.5 |
16 |
20 |
1500 |
2000 |
18.1 |
G1″ |
G5/8″ |
4.75 |
|
YBC-60/160 |
40 |
16 |
20 |
1500 |
2000 |
23.4 |
G1″ |
G5/8″ |
5 |
|
|
|
|
